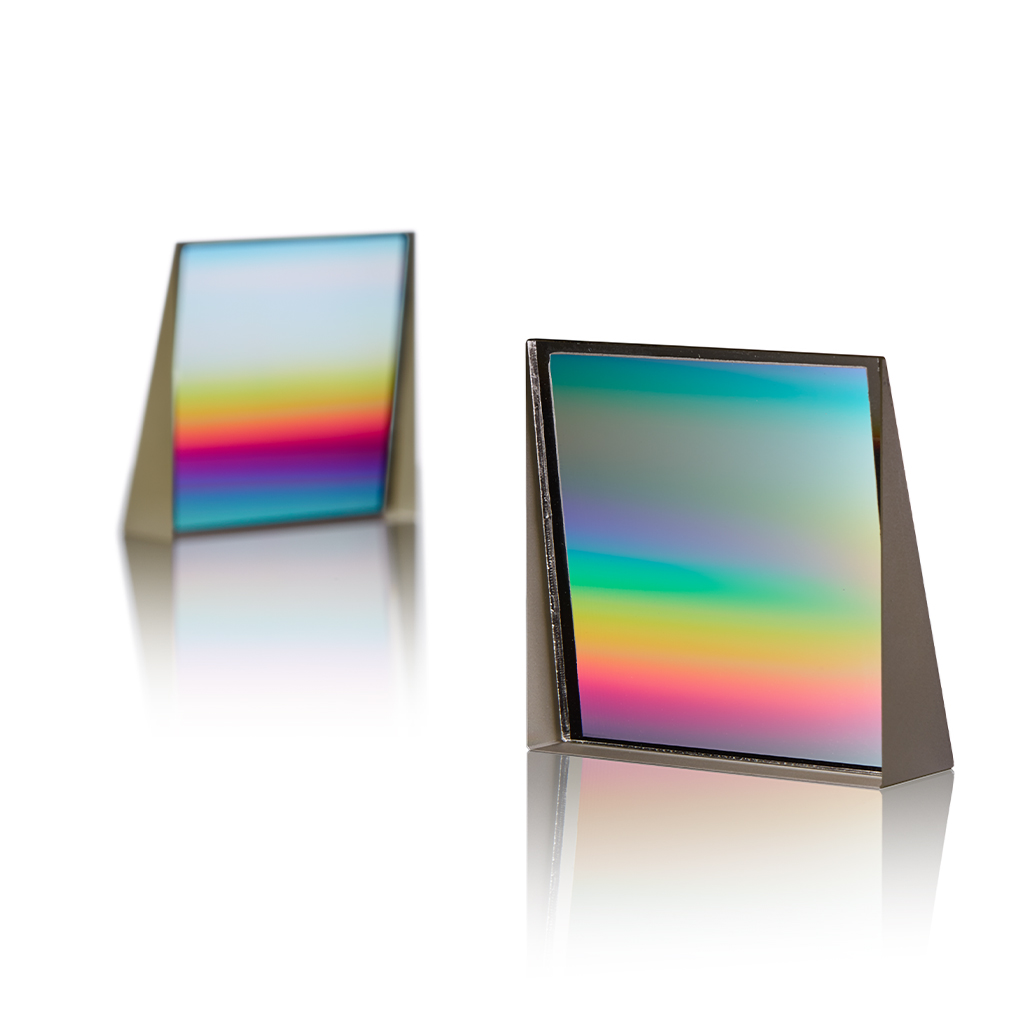

Gitterprismen Kombination aus Lichtbeugung und -refraktion
Ein Grism ist die Kombination aus einem Prisma und einem Gitter. Die von uns angebotenen Grism kombinieren die Dispersionseigenschaften von Gittern mit den Refraktionseigenschaften eines Prismas. ZEISS kann kundenspezifische Grism nach Ihren genauen Spezifikationen entwerfen und produzieren.
![Mann hält ein Grism in der Hand]({"xsmall":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original.image_file.100.100.file/grism_benefit.jpg","small":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original.image_file.360.360.file/grism_benefit.jpg","medium":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original.image_file.768.768.file/grism_benefit.jpg","large":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original.image_file.1024.1024.file/grism_benefit.jpg","xlarge":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original./grism_benefit.jpg","xxlarge":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original./grism_benefit.jpg","max":"https://www.zeiss.de/content/dam/spc/images/products/components/gratings/grism_benefit.jpg/_jcr_content/renditions/original./grism_benefit.jpg"} "Vorteile von Grism")

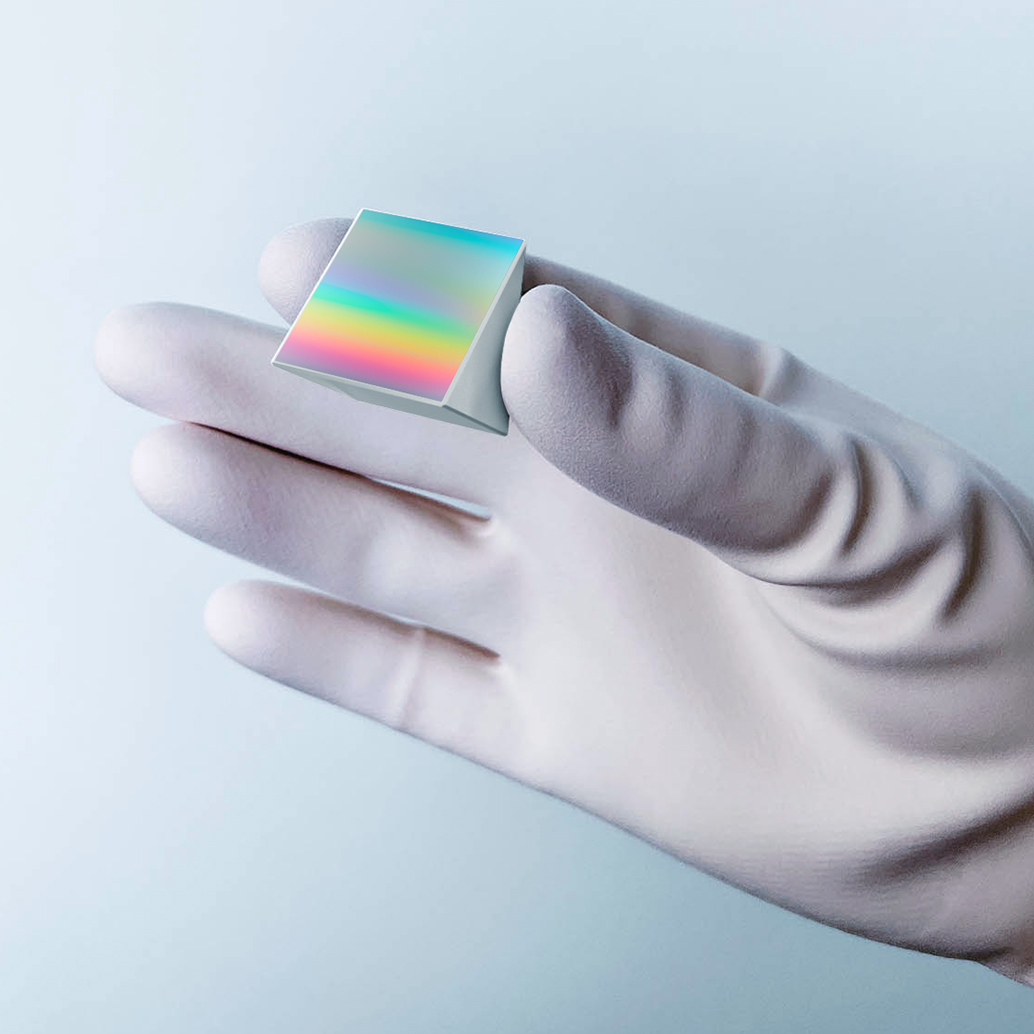

Kombinieren Sie Gitter und Prismen nach Ihren Wünschen
Für die bestmögliche Unterstützung Ihrer Anwendungsbedürfnisse können ZEISS Plangitter mit kundenspezifischen Prismen (in Bezug auf Material und Abmessungen) kombiniert werden. ZEISS Grism sind zudem sehr einfach zu verwenden und erfordern nur einen geringen Justageaufwand. Optisch bieten sie eine geringe Wellenfrontaberration, eine gute Streulichtleistung und können mit einer angepassten Entspiegelung nach Ihren genauen Spezifikationen hergestellt werden.
Downloads
-
ZEISS Optical Gratings - Product Line
ZEISS Gitter-Sortiment - ein Überblick
Seiten: 12Dateigröße: 1 MB -
ZEISS Optische Gitter - Kompendium
Kompendium Grundlagen, Herstellung, Produkte und Anwendungen
Dateigröße: 40 MB
